China Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer wholesale

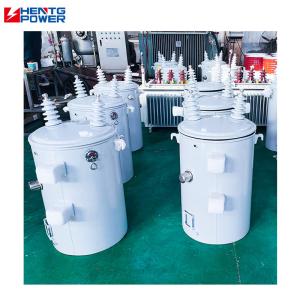

Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer

Name: Variable Voltage Single Phase Pole Mounted Transformer Oil Immersed Mv Hv Transformer
Brand: HENTG Power
Price: 1680 USD

Ask Latest Price

Video Channel

Place of Origin :Jiangsu, China

Brand Name :HENTG Power

Model Number :D11

Certification :CE

MOQ :1 sets

Price :CN¥1680-3600/units

Type :distribution transformer, Oil-IMMERSED Transformer

Material :Aluminum, Copper

Frequency :50Hz, 60Hz

Shape :ROUND

Winding Material :Copper

application :Power

Phase :Single Phase

Coil Structure :Circular coil

Coil Number :Dual-winding coil

Input Voltage :3kV, 6kV, 10kV, 15kV, 35kV, 100V, 69kV, 110kV, 115kV, 132kV, 220kV, 400kV

Output Voltage :400V , 208V, 200V, 415V, 127V, 11kV, 380V, 440V, 480V

Product name :Oil Distribution Transformer

Application :Power Distribution System

Standard :ANSI

Usage :New Energy

Color :White

Warranty :3 Years

Vector Group :II0/II6

Core material :Copper

Efficiency :98%

Temperature Rise :55°C

Insulation Class :Class A

Rated Power :1-10 kVA

Impedance :2-4%

Protection Level :IP23

Mounting Type :Pole Mounted

Secondary Voltage :230/400 V

Primary Voltage :11 kV

Cooling Method :ONAN

Contact Now

Add to Cart

View Product Description

HENTG POWER Variable Voltage Oil Immersed Transformer

25kVA Single Phase Pole Mounted Distribution Transformer

HENTG POWER ─ Global Power System Solutions

Founded in 2011 | 100,000㎡ production base | One-stop service for design, manufacturing and installation

Product Attributes

Attribute	Value
Type	Distribution Transformer, Oil-Immersed Transformer
Material	Aluminum, Copper
Frequency	50Hz, 60Hz
Winding Material	Copper
Application	Power Distribution System
Phase	Single Phase
Standard	ANSI
Warranty	3 Years
Efficiency	98%
Cooling Method	ONAN

Technical Specifications

Rated Capacity (kVA)	HV	Tapping Range	LV	No-load Loss (W)	Load Loss (W)	Dimension (mm)	Efficiency
15	2400-34500V	±2*2.5%	110-690V	60-150	330-1150	520-1135	98.8%
25	2400-34500V	±2*2.5%	110-690V	80-170	370-1250	560-1185	99.0%

Quality Commitment

Double quality inspection: pre-production sample verification + final inspection before shipment (with QC/test report)

International standards: in compliance with ANSI/IEEE/DOE2016/CSA/IEC60076

Service guarantee: FAT factory acceptance test + ≥2-year warranty

Core Advantages

Technical response: independent design team completes drawing confirmation within 7 days

Expert support: 30+ senior engineer team, 24h online (30-minute response)

Product Features

Energy-saving mode: adjust the load and reduce energy consumption

Efficient heat dissipation: optimize the heat dissipation design and extend the service life

Powerful power: supports up to 25kVA power output to meet industrial needs

Heavy load capacity: suitable for high-load equipment, excellent stability

All-round protection: equipped with multiple safety protection measures

Product Images

Customized Cooperation

OEM services available

Flexible payment options

Global project installation support
